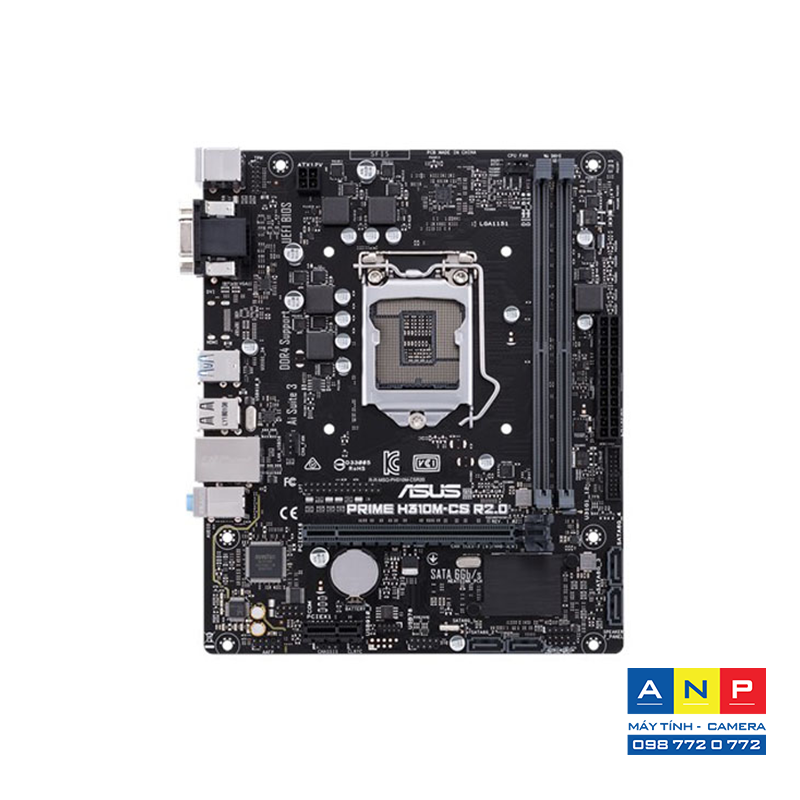

Main Asus PRIME H310M-CS R2.0
Mã Sản Phẩm: ANP-H310M-CS
Bảo Hành: 12 Tháng
Tình Trạng: Tạm Hết Hàng
Danh Mục: Mainboard
Main Asus PRIME H310M-CS R2.0 -
  • Thông tin chi tiết
  • Hướng dẫn mua hàng

Mô tả:

  • ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability.
  • Fan Xpert: Flexible controls for ultimate cooling and quietness, plus GPU-temperature sensing for cooler gaming.
  • 5X Protection III: Multiple hardware safeguards for all-round protection.
  • CPU

Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list

  • Chipset

Intel® H310

  • Memory

2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor
** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.

  • Graphic

Integrated Graphics Processor- Intel® HD Graphics support
- Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

  • Expansion Slots

1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
1 x PCIe 2.0 x1

  • Storage

Intel® H310 Chipset :
4 x SATA 6Gb/s port(s), gray,

  • LAN

Realtek® RTL8111H, 1 x Gigabit LAN

  • Audio

Realtek® ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

  • USB Ports

Intel® H310 Chipset :
4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board)
Intel® H310 Chipset :
6 x USB 2.0/1.1 port(s) (4 at back panel, , 2 at mid-board)

  • Special Features

ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 4 Phase digital power design
ASUS OptiMem
- Optimem (Improved DDR4 stability)
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- PC Cleaner
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM

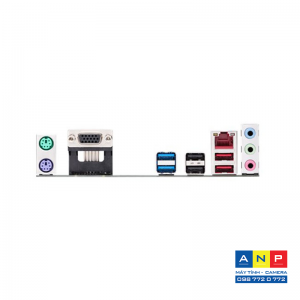

  • Back I/O Ports

1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 1 (blue) Type-A up to 5Gbps
4 x USB 2.0
3 x Audio jack(s)

  • Internal I/O Ports

1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x LPT header
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x 14-1 pin TPM connector
1 x System panel connector
1 x Chassis intrusion header
1 x Speaker connector

  • Accessories

User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD

  • BIOS

64Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, ASUS EZ Flash, Multi Language

  • Manageability

WfM 2.0, DMI 2.0, WOL by PME, PXE

  • Operating System

Windows® 10 64-bit

  • Form Factor

mATX Form Factor
8.4 inch x 7.0 inch ( 21.34 cm x 17.78 cm )
